MULTILED QX Mini

Key features

Color and Lenses

Very Small

White LED

Blue LED

Operating mode

Pulsed

Continuous

Specs

7.000 lm

Housing variants

On Request

Technical features

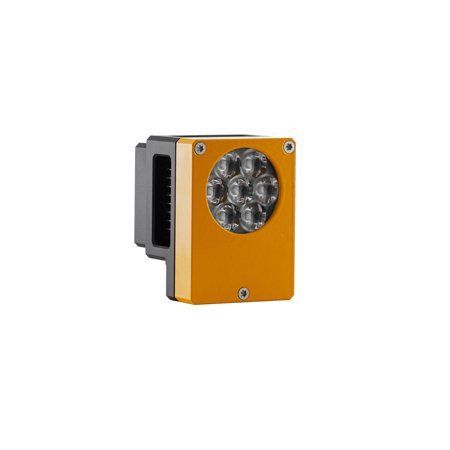

  • The MultiLED QX MINI is our smallest high power LED. It is quarter the size of an LT and has 85% of its light output
  • White 7000 Lumen or blue 27.000 mW
  • 7 LEDs, 70 Watts, 48V
  • Standard desktop power supply with 7 m cable included
  • Continuous operation
  • Bottom 1/4“ standard thread for photographic accessories and mount
  • Status LED
  • Uses MULTILED GEN4 System cable
  • Standard lenses: 22° FWHM
  • Optional lenses: 27°, 41° FWHM
  • Connect up to 8 units to a single power supply using the GX8 controller
  • Basic power supply with 7 m cable included.


State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.
Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
