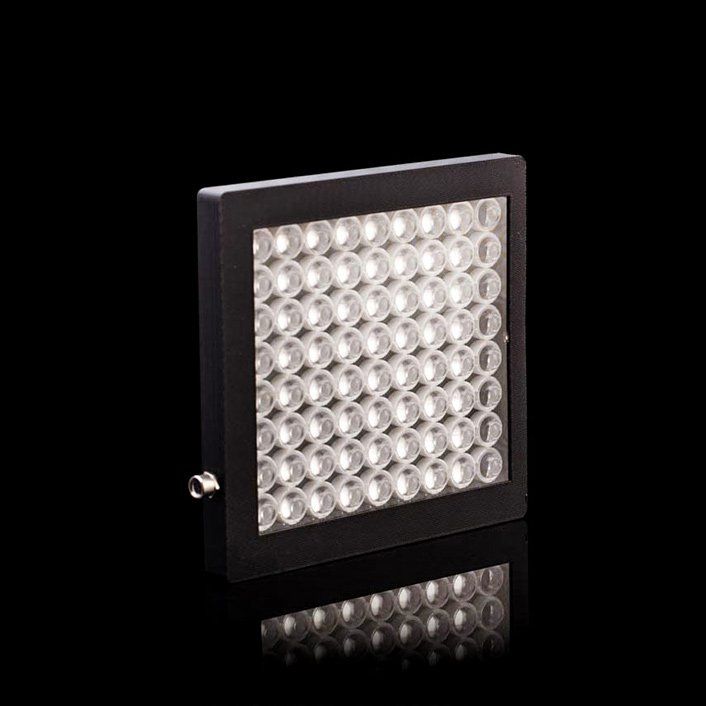

MultiLED L7 XF

MULTILED L7 XF Key features

Color and Lenses

White LED

Operating mode

Pulsed

Specs

75.000 lm

150.000 lm in overdrive

Housing variants

High-G or IP67 options

Technical features

For pulsed operation at low duty cycle only. With 6 kW output, e.g. at 1 kHz and 1 μs exposure time only 6 W are used.
Power consumption limited to 40 W.
Flat design (10 mm)
White LED only.
Very homogenous illumination.
15°, 30°, 50°, 60° or 115° FWHM lenses available.
Pulsed by TTL pulse duration.
Power supply 60 W with 5 m cable with M8 connector included.

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
