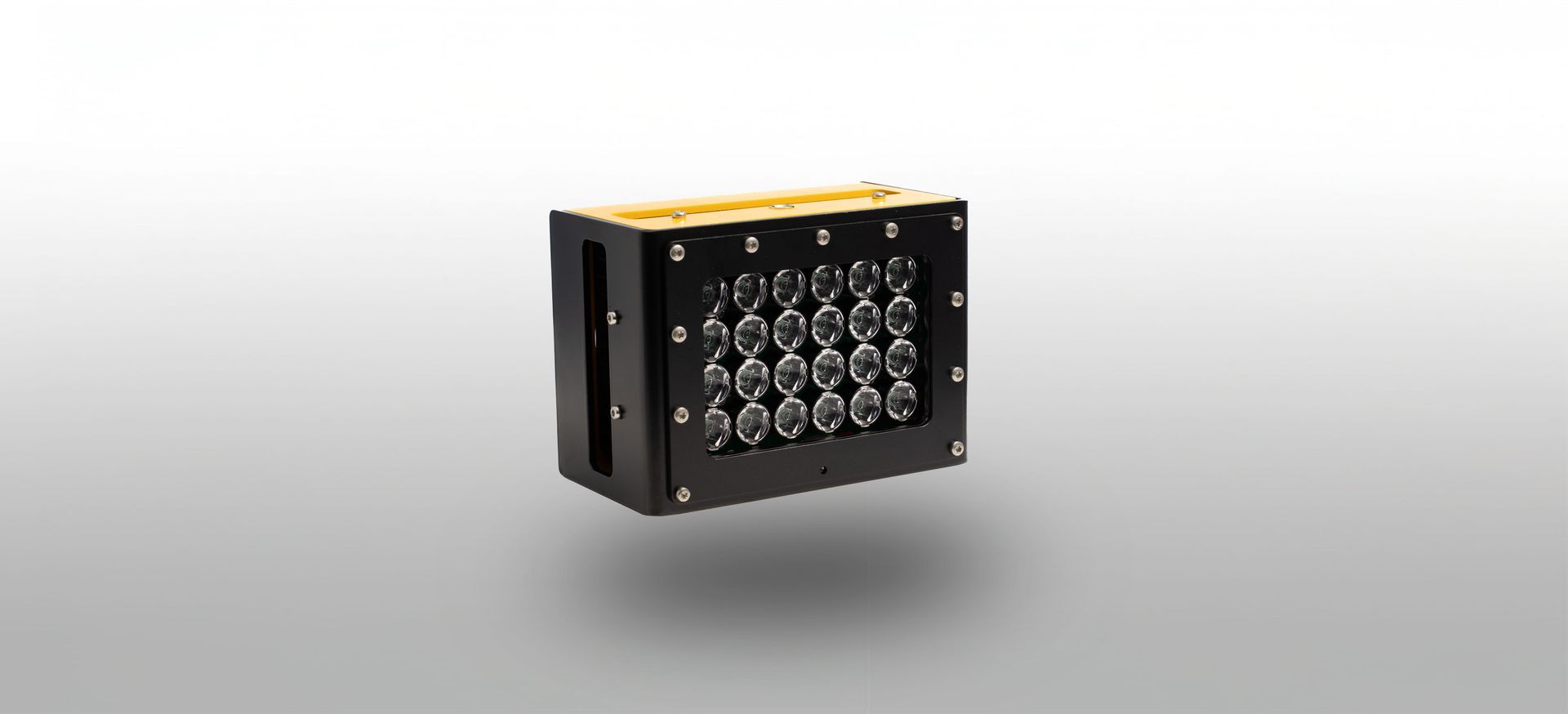

MULTILED LT MAX

Key features

Color and Lenses

White LED

Color LED

Long Lifetime


Operating mode

Continuous

Specs

24.000 lm

Housing variants

On Request

Technical features

  • 24 high power LED, 240 Watt, 24 Volt (24,000 Lumen total)
  • Robust and highly available XLR jack
  • Fan inside
  • Environmental protection: as IP20
  • Bottom 1/4“ standard thread for photographic accessories and mount
  • Dimensions: 146*106*88 mm
  • Preinstalled lens (horizontal x vertical): 12°x12°
  • Additional lenses (horizontal x vertical): 25°x25° - 40°x40° - 60°x60° - 30°x13° - 60°x12°
  • Power supply and 6m XLR cable included
  • Option: longer cables or other cable types on request.


State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.
Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
Show me all LED Solutions
