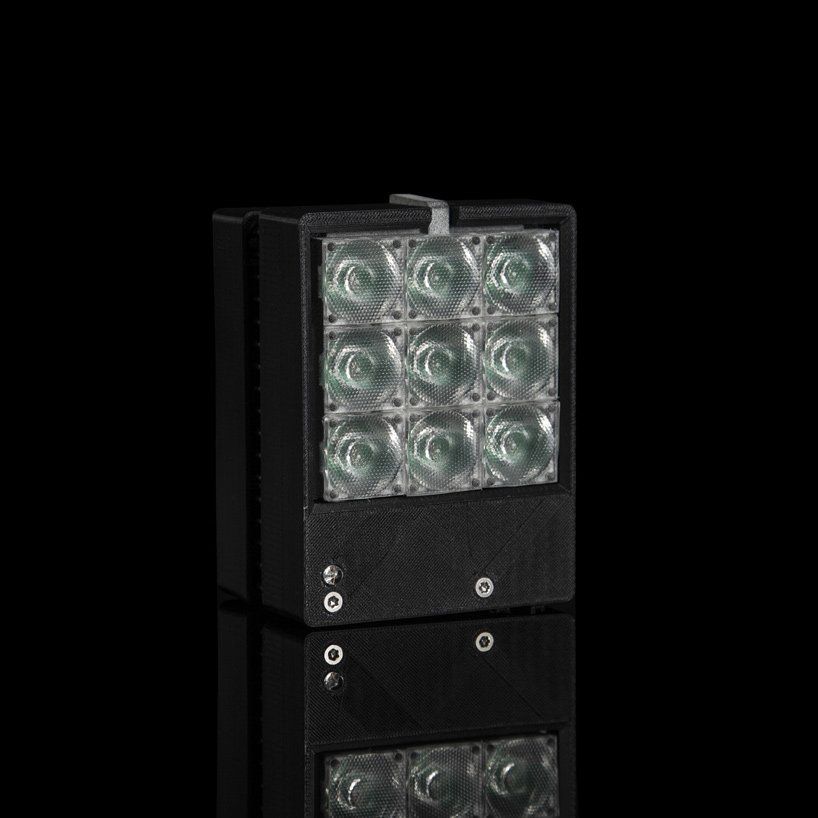

MULTILED IT

Key features

Color and Lenses

Changeable Lens

IR or UV LED

Operating mode

Continuous

Pulsed

Specs

Shortest strobe is 200 ns

Housing variants

On Request

Technical features

  • Easily exchangeable lens available: 15°, 25°, 45°, 75°
  • IR UV LED
  • Continuous or pulsed operation
  • Bottom and top 1/4-inch standard thread for photographic accessories and mount
Color Wave Output
UV 365 nm 15.120 Flux(mW)
UV 358 nm 20.000 Flux(mW)
UV 395 nm 20.000 Flux(mW)
UV 405 nm 20.000 Flux(mW)
IR 850 nm 12.150 Flux(mW)
IR 940 nm 12.150 Flux(mW)

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.
Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
Show me all LED Solutions
