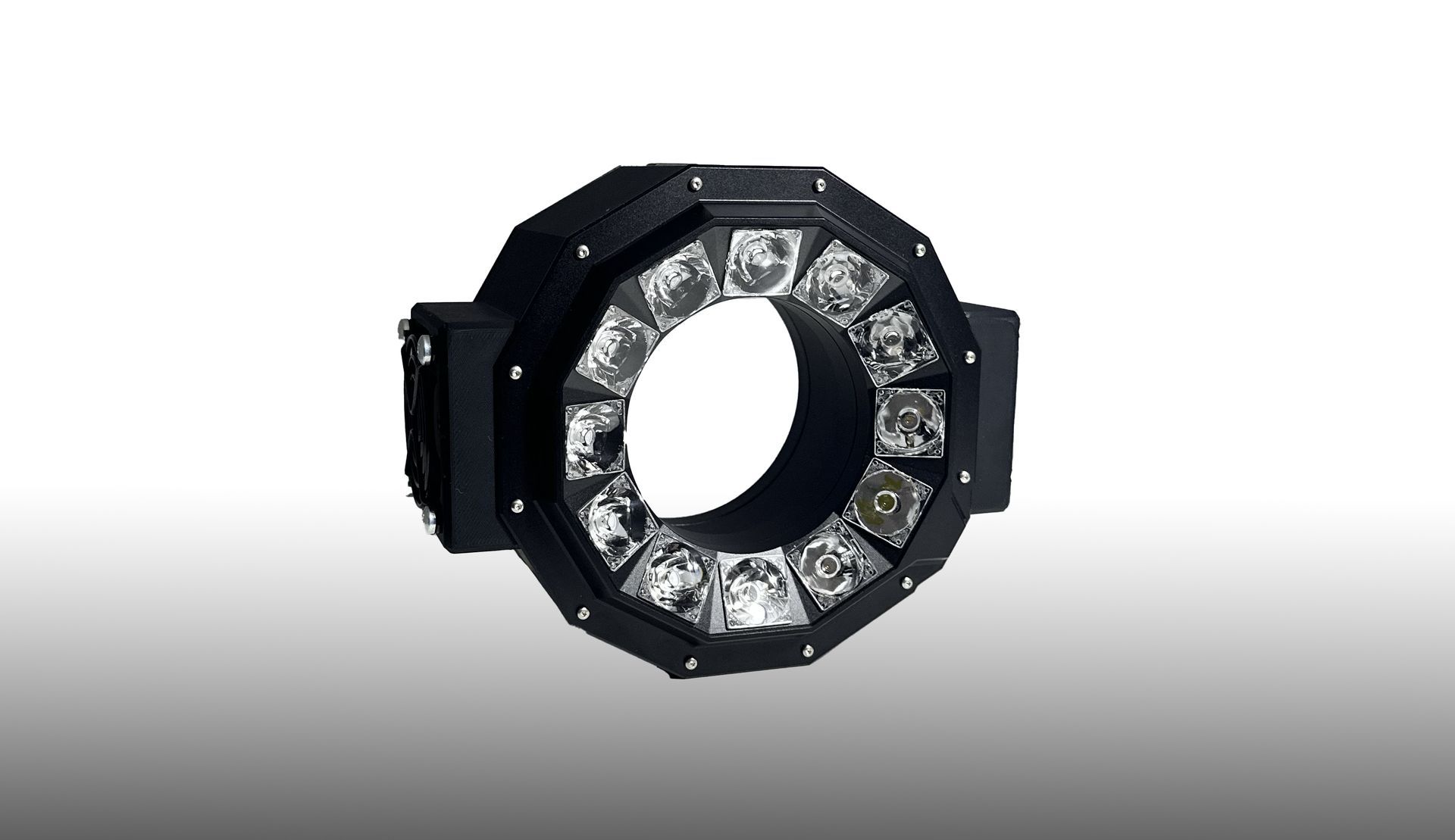

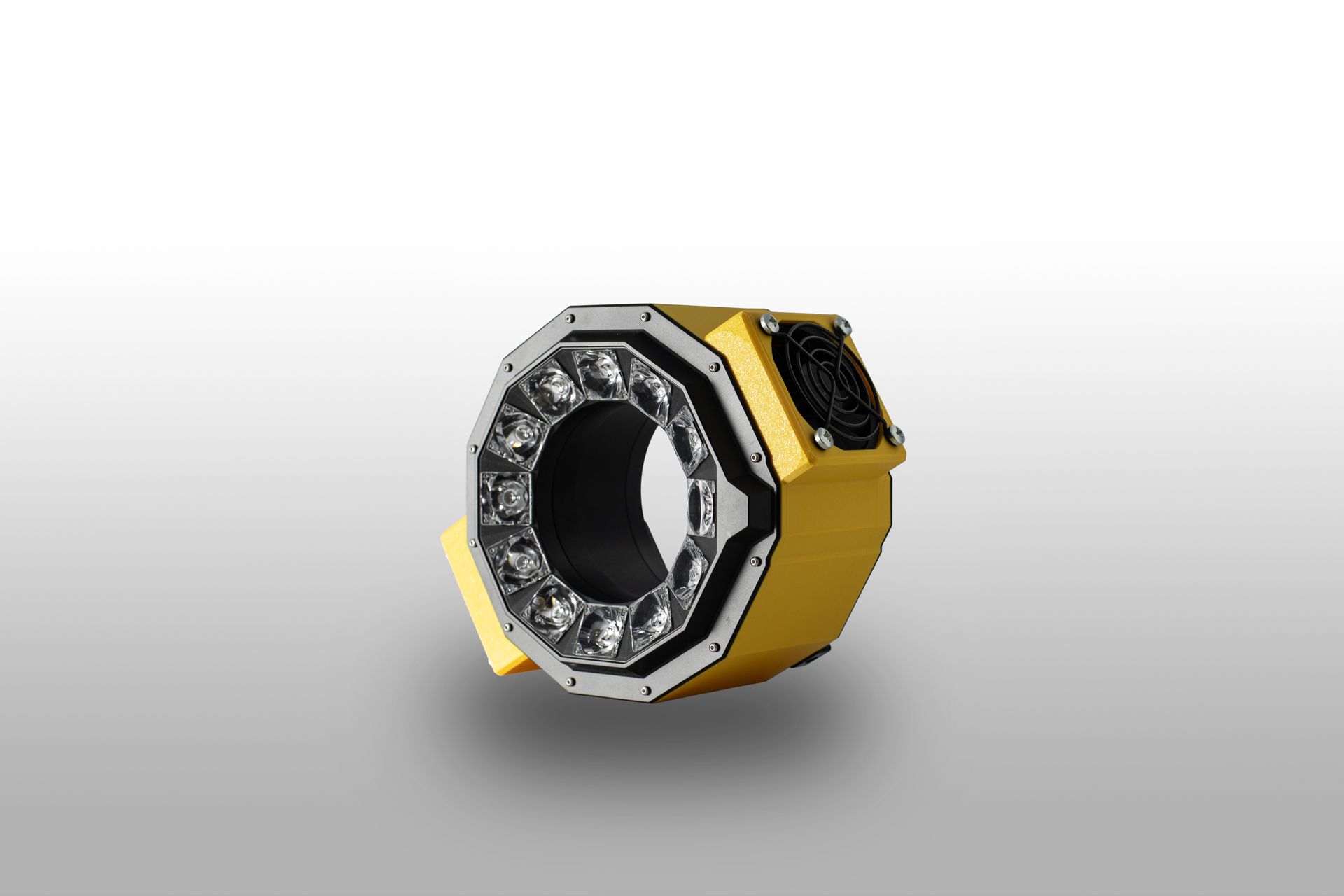

MultiLED RX

MULTILED RX Key features

Color and Lenses

White LED

15 Million lx max

Operating mode

Down to 200ns

Continuous, Pulsed

Special

For macro

Control

Full GX-8 control

Technical features

• 15 million lx in center of focus point (diameter approx. 40mm)

• focus point 10 cm from front of device (custom disctances available)

• Standard desktop power supply with 5 m cable included

• White LED only

• 280 W 48V

• Continuous operation (see GX8 for pulsed operation options)

• 2 x 1/4“ standard thread for photographic accessories and mount

• Uses Molex MicroFit 8 Pin for connection to GX-8

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.

Show me all LED Solutions
