MultiLED G9

MULTILED G9 Key features

Color and Lenses

High-G LED Solution

Operating mode

Continuous

Pulsed

Specs

12.000 lm / head

Up To 9 Heads

Housing variants

High-G

100G

Technical features

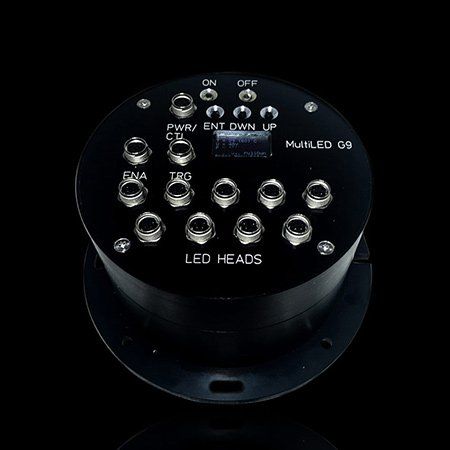

G9 supplies power for 1 to 9 „A1“ lamp heads
G9 battery pack attached to G9 control unit (exchangeable)
Charger input
Strobe via trigger signal (TTL) down to 1 μs rise time and 2 μs fall time (invertable)
Trigger in: TTL, invertable
Enable input to disable trigger input
30 seconds of continuous operation with 9 lamp heads at 100% power. Longer when pulsed
OLED display control and monitoring
100G
12.000 lm continuous output per LED head. Overdrive mode (pulsed) 16.000 lm
Overdrive mode (pulsed) 16.000 lm

Download Datasheet

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
