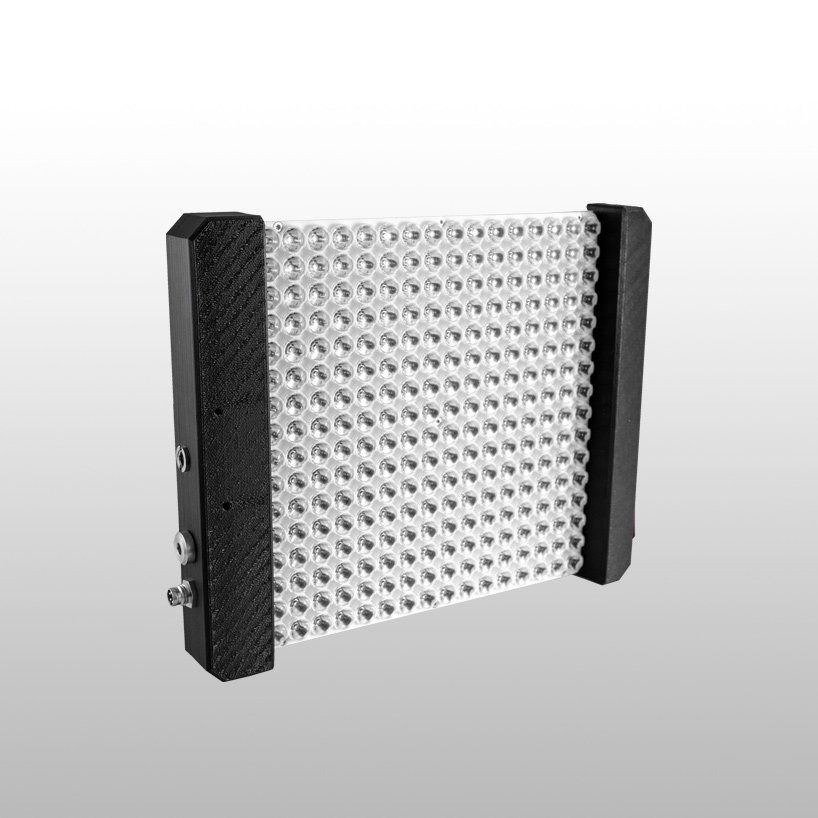

MultiLED L50X

MULTILED L50X

Key features

Color and Lenses

Changeable Lens

White LED

Color LED

Operating mode

Continuous

Strobe

Overdrive

Specs

500.000 lm overdrive

Shortest strobe is 250 ns

Housing variants

High-G or IP67

options

Technical features

• For pulsed operation at low duty cycle only. With 7,5 kW LED power, e.g. at 10 kHz and 1 μs exposure time only 75 W are used.

• Power consumption limited to 320 W

• White or Color LED

• Very homogenous illumination

• Preinstalled lens (horizontal x vertical): 18°x18°

• Additional lenses (horizontal x vertical): 27°x27° - 45°x45° - 63°x63° - 35°x19° - 63°x18° • Pulsed by TTL pulse duration.

• Power supply 320 W with 5 m cable with 8 Pin GEN4 connector included.

Download Datasheet

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
