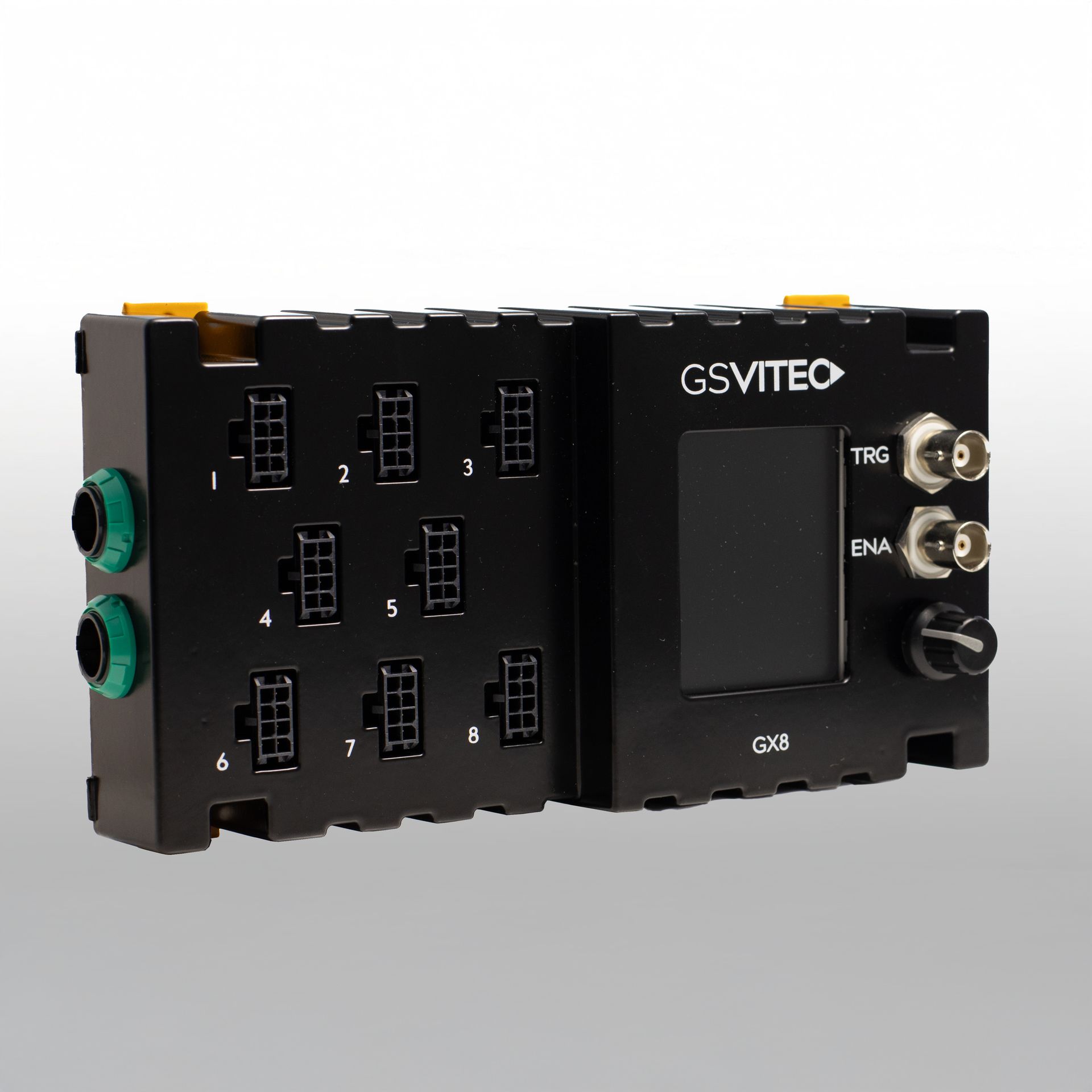

MultiLED GX8

MULTILED GX8 Key features

Power Supply

• Max 1200w for GX8 and GX8touch.

• Max 4800W for GX8touch 19"

Operating mode

• Continuous

• Level strobe

• Edge strobe with predefined duration and delay

Specs

• 8 channels

• RS485 with GX8touch and GX8touch 19" only.

Housing variants

• GX8 (desktop)

• GX8touch (desktop)

• GX8touch 19"

• GX8touch 19" double

Technical features

• GX8 is the control and power supply unit for up to 8:

- ZX, LX, MX, QX, QX MINI, L50X

• 8 lamp heads percontroller

• Complete status display for each connected lamp head and controller

• Up to 1.2 kW power supply (GX8 and GX8touch desktop devices)

• Large LCD color display

• Trigger and enable input

• Rotary switch for easy menu navigation (GX8)

• Standard version: desktop housing

• Optional versions :

GX8touch with RS485

GX8touch 19"

GX8touch 19" double ( 2 controllers in 1 4U rack insert)

• Huge selection of special feature power supplies available: desktop rackmount, IP protection, high efficiency

• Trigger and Enable inputs: TTL, isolated, up to 8V, invertable

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
