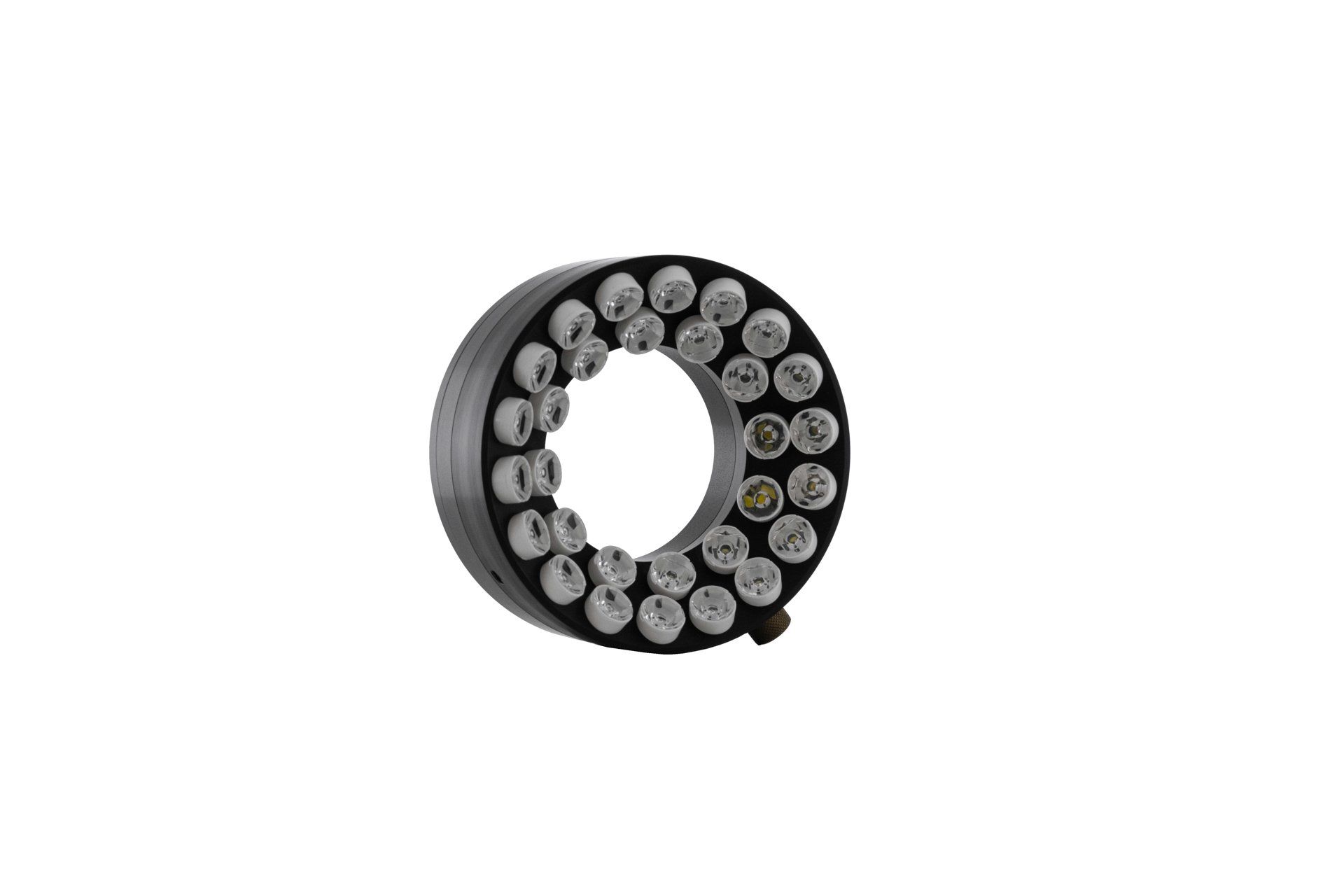

MULTILED R100 & R200 Key features
Color and Lenses
White LED
Option: color LED
Operating mode
Continuous
Pulsed
Specs
For macro and microscopy
Low heat radiation
Housing variants
On Request
Technical features
- Several million Lux in the focus point. Depending on camera sensitivity, up to aperture 22 at 1 microsecond exposure can be achieved.
- Color LED for R100 only
- LED power is focused 50 mm from the front of the unit to a spot of 40*40mm. Other working distances on request.
- Inner diameter 78 mm, outer diameter 140 mm, height 70 mm incl. connectors. 2*standard 1/4“ threads on the side (90° to each other)
- Passively cooled , 10 % duty cycle continuously or up to 2 min. operation at 100% power. Continuous operation with additional cooling module.
- BNC, TTL, pulse width controlled up to 30 kHz
