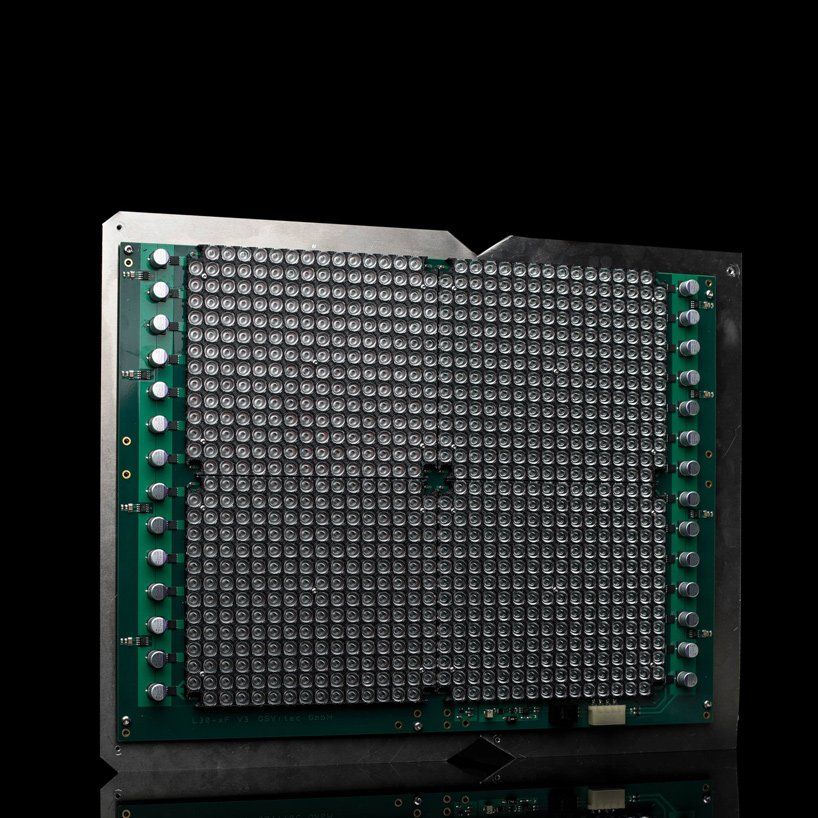

MultiLED L180-XF

MULTILED  L180 XF Key features

Color and Lenses

Changeable Lens

White LED

Color LED

Operating mode

Continuous

Strobe

Overdrive

Specs

1.800.000 lm overdrive

Shortest strobe is 250 ns

Housing variants

High-G or IP67 options


Technical features

  • For pulsed operation at low duty cycle only. With 30 kW output, e.g. at 8 kHz and 1 μs exposure time only 240 W are used.
  • Power consumption limit depends on heatdump.
  • Flat design (20 mm, version without heatdump)
  • White or Color LED.
  • Very homogenous illumination.
  • 15°, 25°, 45°, 75° or 120° FWHM lenses available. Changeable lenses.
  • Pulsed by TTL pulse duration.
  • Power supply 100 W with 5 m cable with 4 Pin Molex connector included.

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.
Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
