MultiLED CG8

MULTILED CG8 Key features

Color and Lenses

High-G LED Solution with field changeable lens

Operating mode

Continuous

Pulsed

Specs

6.000 lm / head

Up To 8 Heads

Housing

100G

field exchangeable battery pack

Technical features

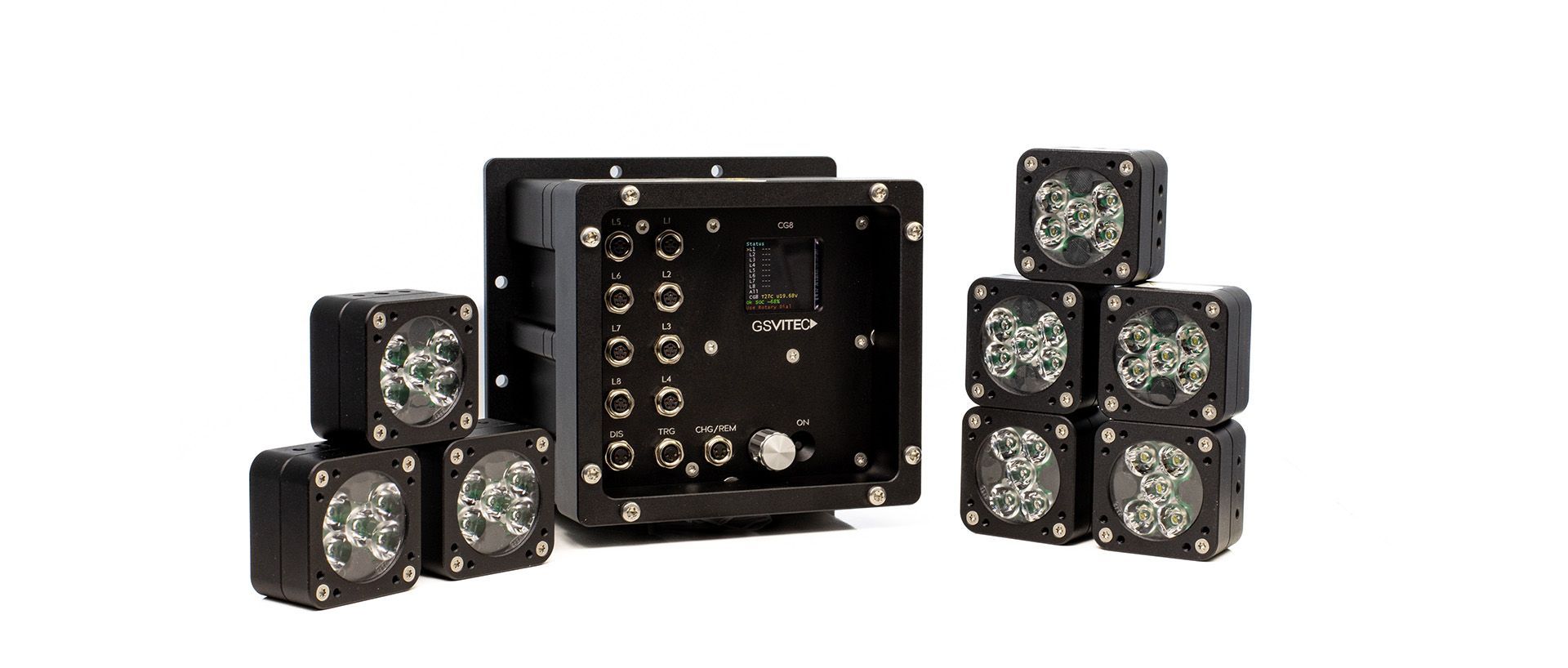

CG8 supplies power for 1 to 8 „CG8-L1“ lamp heads
CG8 battery pack attached to CG8 control unit (exchangeable)
Charger input
Strobe via trigger signal (TTL) down to 1 μs rise time and 2 μs fall time (invertable)
Trigger in: TTL, invertable
Enable input to disable trigger input
50 seconds of continuous operation, battery capacity sufficient for 420 seconds (8 lamp heads at 100% power)
LCD display control and monitoring
100G
6.000 lm continuous output per LED head, greatly increased efficiency compared to G9 due to new lens system

Download Datasheet

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
