MultiLED GS8

MULTILED GS8 Key features

Color and Lenses

White LED

Option: color LED

Up to 8 separate LED heads

synchronised

Operating mode

Pulsed light down to 50ns (color LED)

and 100ns (white LED)

Specs

For macro and microscopy

Low heat radiation

Housing variants

On Request

Technical features

Up to 120 million Lux in the focus point with 8 heads (depending on LED color and working distance).
Depending on camera sensitivity, closed aperture at below 1 microsecond exposure can be achieved.

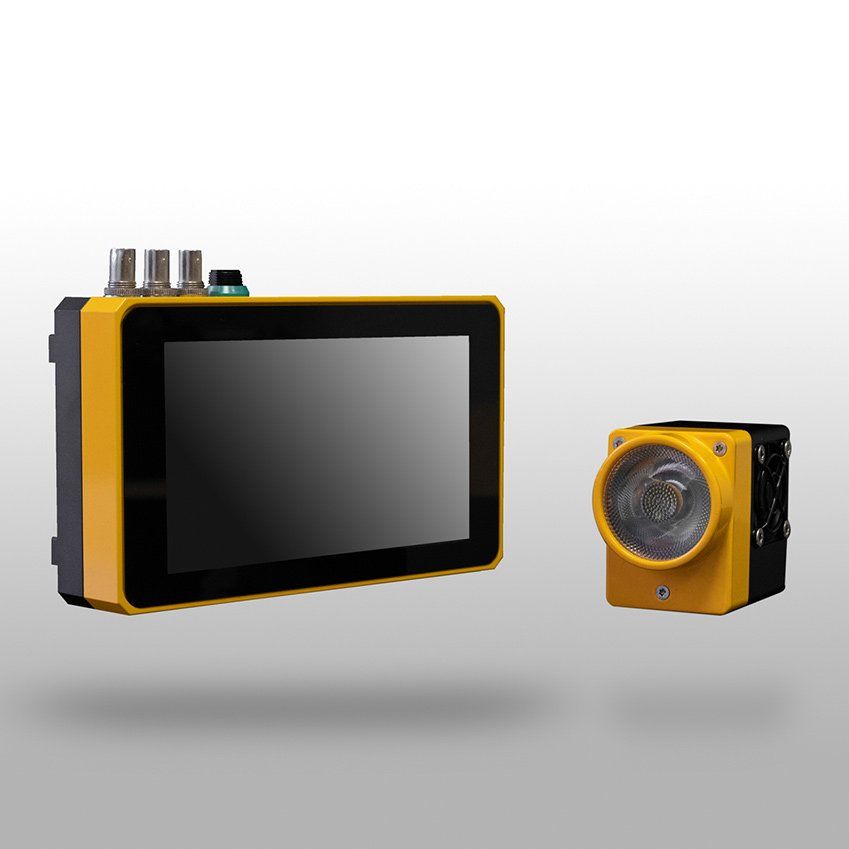

Touchscreen controller for configuration.

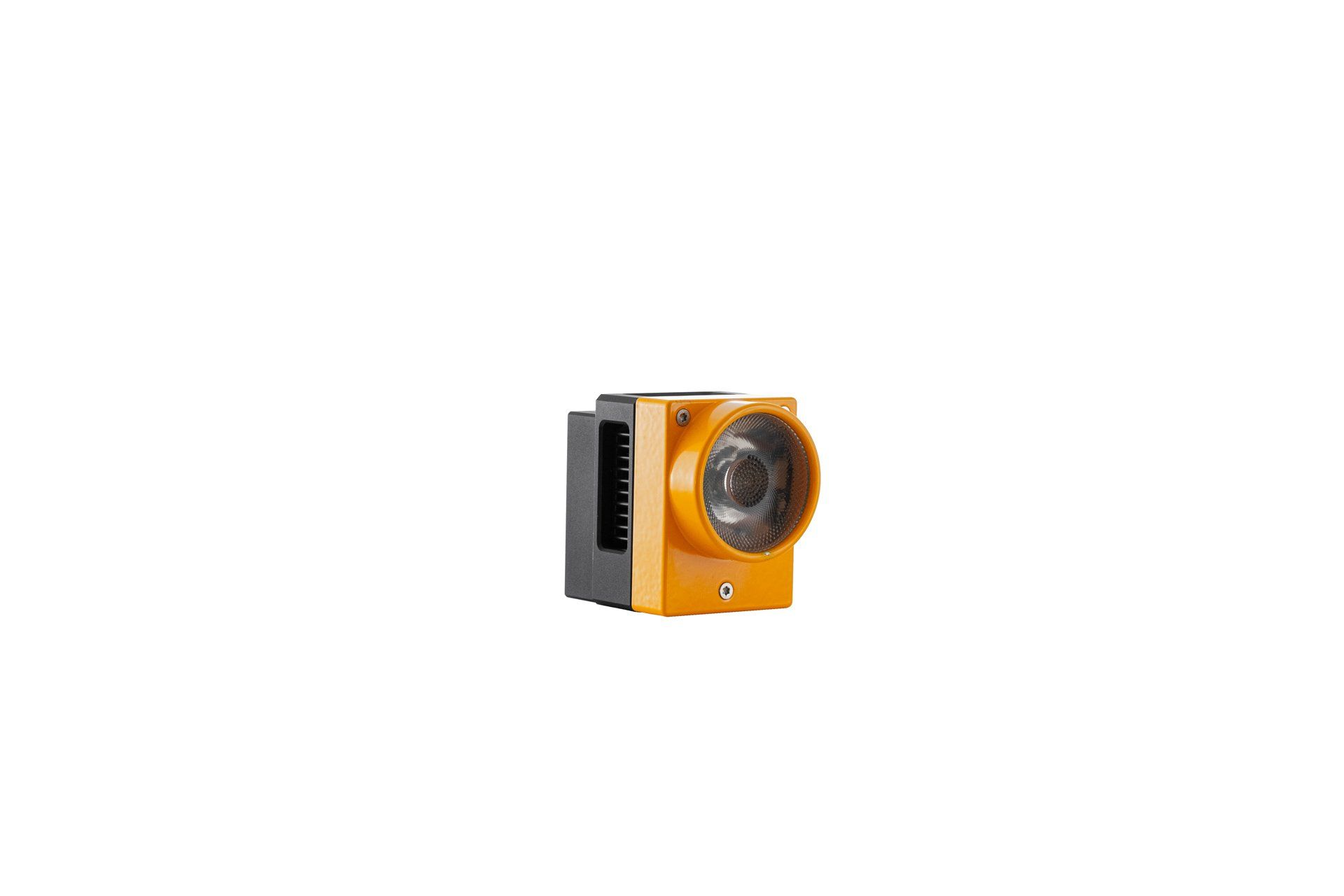

Position up to 8 „S3/xf LED heads“ freely around your application.
Active cooling , 5% duty cycle continuously (white LED), 10% (color LED).
BNC, TTL, pulse width controlled up to 1.4 MHz.
Option on request: 1 several hundred microseconds pulse for ultra highspeed cameras up to 10 fps.

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button
Bildtitel

Untertitel hier einfügen

Button

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
