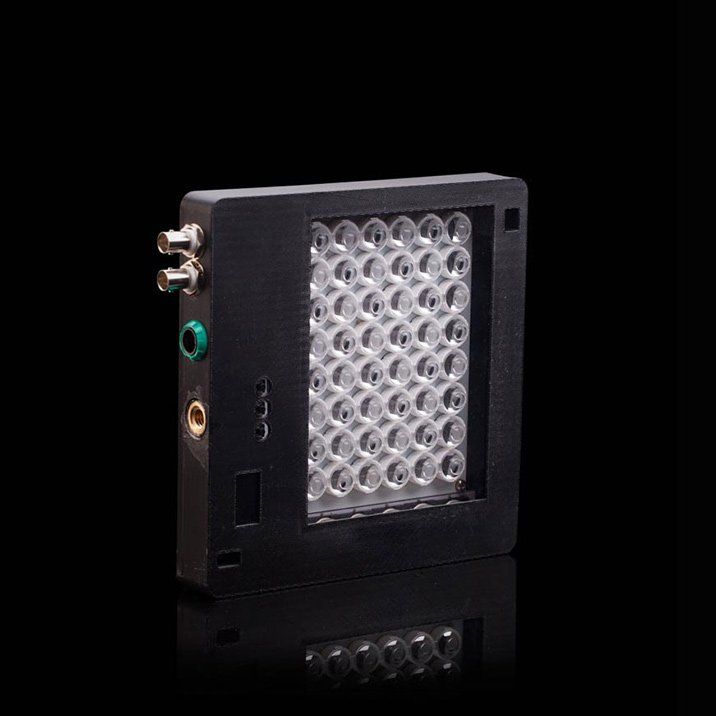

MultiLED L5

MULTILED L5 Key features

Color and Lenses

White LED

Operating mode

Continuous

Pulsed

Overdrive

Specs

50.000 lm

70.000 lm in overdrive

Shortest strobe is 1 μs

Housing variants

High-G or IP67 options

Technical features

Flat design for pulsed operation at low duty cycle or for short term use. Heat sink and fan for continuous use optional.
White LED only.
Very homogenous illumination.
15°, 30°, 50°, 60° or 115° FWHM lenses available.
OLED display and 3 button control.
Pulsed by TTL pulse duration, inverted TTL, pull up / pull down signal, selectable. Edge strobe mode with predefined pulse length and delay selectable.
Basic power supply 60 W with 5 m ODU push pull connector cable included.
Overdrive mode: At low duty cycle overdrive mode with up to 70.000 lm can be used.

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button

LED Colors available for order:

Color	Wave	Output
Cool-White		50.000 lm
Royal-Blue	450 - 460 nm	172.000 Flux(mW)
Blue	465 - 485 nm	13.000 lm
Green	520 - 535 nm	30.000 lm
Amber	560 - 650 nm	21.400 lm
Red-Orange	610 - 620 nm	26.100 lm
Red	620 - 630 nm	21.000 lm
Photo-Red	650 - 670 nm	124.000 Flux(mW)

Application specific MultiLED housings for order:

Products	Order code
High G upgrade	gsv-hou-HG100-med
IP 67 upgrade Aluminium housing	gsv-hou-ip67-med-al
Particle polluted vacuum upgrade	gsv-hou-vacpart-med
300°C+ temperature upgrade AL	gsv-hou-300-AL-med
300°C+ temperature upgrade V4A	gsv-hou-300-V4A-med

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
