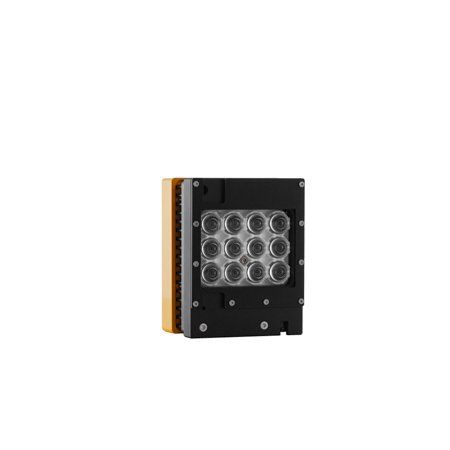

MultiLED QX

MULTILED QX

Key features

Color and Lenses

Changeable Lens

White LED

Blue LED

Small Size

Operating mode

Pulsed

Continuous

Specs

Shortest strobe is 200 ns

12.000 lm

Housing variants

On Request

Technical features

Preinstalled lens (horizontal x vertical): 12°x12°
Additional lenses (horizontal x vertical): 25°x25° - 40°x40° - 60°x60° - 30°x13° - 60°x12°
12.000 Lumen
Standard desktop power supply with 5 m cable included
White light (look at CT model for color LED)
150W 48V
Continuous operation
Bottom 1/4-inch standard thread for photographic accessories and mount
Status LED
Uses MULTILED GEN4 System cable

Download Datasheet

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
