MultiLED G8

MULTILED G8 Key features

Power Supply

Up to 8 lamp heads

Operating mode

Up to 1.200 W

Remote control

Specs

Large color LCD Display

Housing variants

On Request

Technical features

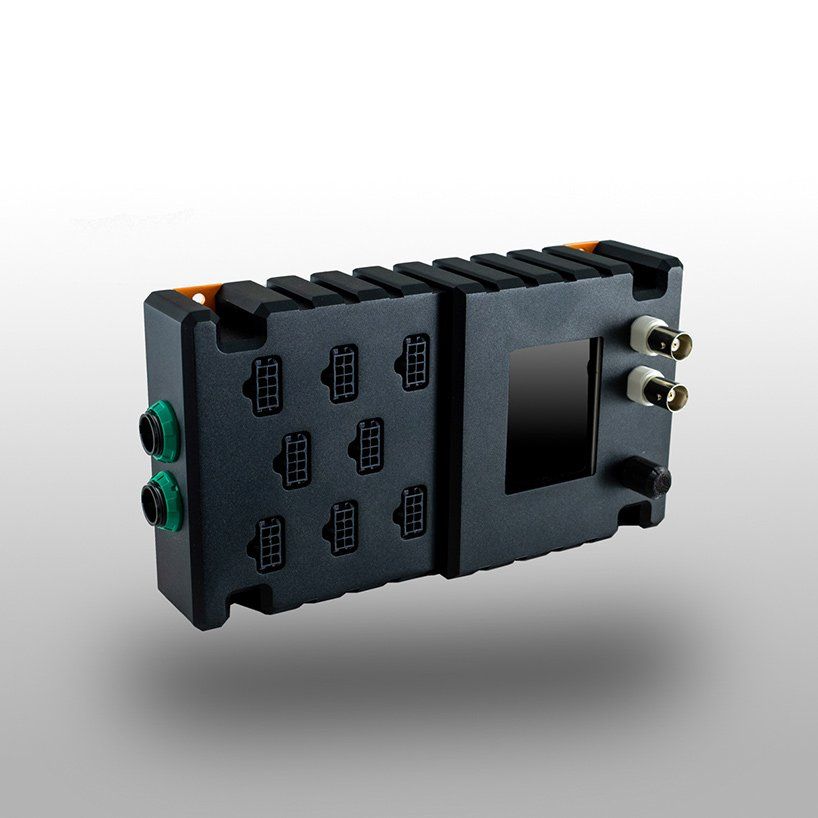

G8 is the control and power supply unit for up to 8:

- QT, CT, IT

- MT and LM (control only, MT and LM come with their own power supplies)

- ST (power supply only)

Up to 8 lamp heads
Complete status display for each connected lamp head
Up to 1.2 kW power supply
Large LCD color display
Trigger and enable input
(Optional) RS 485 remote control connection
Rotary switch for easy menu navigation - camera specific power cable not included
Camera power supply unit embedded / cable not included
Standard version: desktop housing
Optional version 1: 19“ rack mount housing 2U
Option for all versions: RS485
Huge selection of special feature power supplies available: desktop Rackmount, IP protection, high efficiency
Trigger and Enable inputs: TTL, isolated, up to 8V, invertable

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.

Show me all LED Solutions
