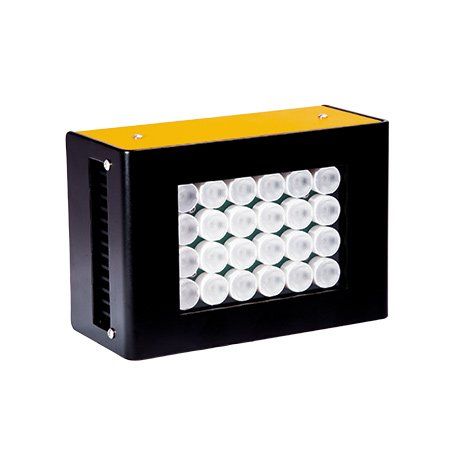

MultiLED PT

MULTILED PT

Key features

Color and Lenses

White LED

Color LED

Long Lifetime

Small Size

Operating mode

Pulsed

Continuous

Overdrive

Specs

7.700 lm

10.000 lm Overdrive

Housing variants

On Request

Technical features

24 High power LEDs, 84 Watt, 24 Volt (7,700 Lumen total)
Robust and highly available XLR jack
fan inside
Environmental protection: as IP20
Alternative: other IP categories on request
Weight: approx. 1,1 kg
bottom 1/4-inch standard thread for photographic accessories and mount
Lenses: standard full angle 15°
Alternative: 20°, 30°, 50°, 60°, 180°. Can also be changed after sales on request.
Dimensions: 160*117*80 mm
Basic power supply and 5m XLR cable included.
Alternative/ Accessory: longer cables or other cable types on request, green, red, blue, white CRI-90 LEDs on request, IP class on request.

Download Datasheet

Bildtitel

Untertitel hier einfügen

Button

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.

Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.

Show me all LED Solutions
